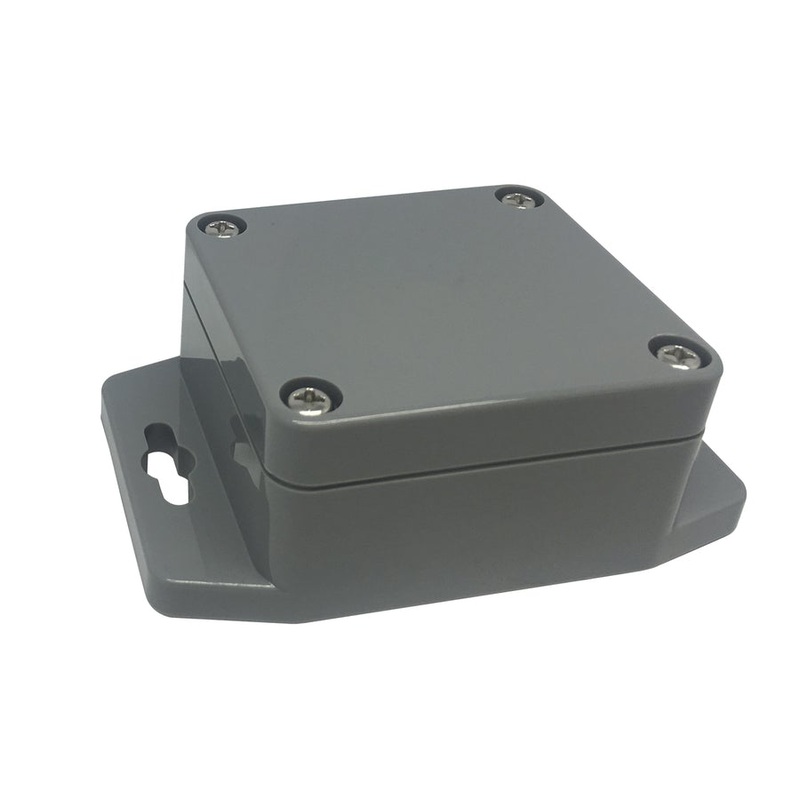

Sale! Features: Operating temperature: -20 to 80 degrees Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc. The lid and base incorporate a tongue and groove sealing system with a EPDM gasket Lid fixing screws are M-4 stain
Unconditional Satisfaction GuaranteeNo Shipping Fees Above 302 Months to Decide. Returns Simplified.Features:
Operating temperature: -20 to 80 degrees
Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
The lid and base incorporate a tongue and groove sealing system with a EPDM gasket
Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
Specifications:
| Width | 171mm |
| Height | 55mm |
| Depth | 121mm |
| Width | 201mm |
| Dimensions details | Base Dimensions |
| Depth | 121mm |
| Material | ABS Plastic (Acrylonitrile Butadiene Styrene) |
| Ventilation Holes | No |
| PCB Internal Guide Slots | Yes |
| Gasket sealing system | Yes |
| Gasket Material | Neoprene |
| Internal Mounting Posts | Yes |
| Colour | Dark Grey |
| IP Rating | IP65 |
| Dust/Particle Ingress Protection | 6 – Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 – Water jets |
Cost - $25
